Digital colouring in photoshop

Here’s a rundown of how I colour the Quokka cover each week. I’ll use the Easter cover as an example.

I use Photoshop CS3 and a Wacom Intuos 3 graphics tablet to do the colouring.

I do quite a few things to get to the colouring stage:

1. I draw a sketch at final print size, and get it approved by Quokka Press
2. I set the sketch onto my lightbox, and lay over some watercolour paper (190 gsm smooth)
3. I ink the lines in using ordinary black ink and a  Hunt 120 nib

lightbox
finished line work on my lightbox

4. I scan the finished linework (300dpi, ‘colour’ mode)
5. I save the original scan as a tiff file (and keep a copy separate)

2-scan-PS
scanned image, before clean-up

6. I open up my ‘quokka template’ photoshop file- this has the correct dimensions for the cover, and the angled bottom border. I drag the tiff linework  into the template file and line it up in the right place. I rename the linework layer ‘lines’.

7. I adjust the levels of the lines (ctrl+L for PC users, cmd+L for mac users)- this is sort of like Napisan for black and white artwork. By adjusting the sliders, I can make the whites whiter and the darks darker. The histogram for black and white artwork usually looks the same every time- see the diagram below- there’s a little bump on the left, and a big curve going up to the right. I drag the white slider a bit to the left until it reaches the base of the curve.  I drag the black slider to the right, until it’s on the right-hand side of the little bump.

4-levels
Adjusting levels

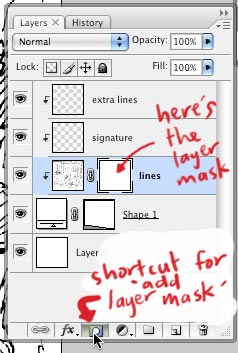

8. I add a layer mask to the lines layer. By painting in the layer mask with black, I can erase parts of the image- things like thumbprints, blobs of ink, and stray lines, for example. If I erase something then I want to bring it back, I paint into the layer mask with white. Very handy.

add-layer-mask
Adding a layer mask to the lines layer

So- my linework is all cleaned up and ready to go.

20100401-712-Easter-final-bw
final linework, cleaned up

Now- the colouring begins.

9. First I set the ‘lines’ layer mode to multiply– this makes the whites see-through, but keeps the linework black, so that colour layers will be able to go underneath the lines.

layer-mode-multiply
Setting layer mode to ‘multiply’

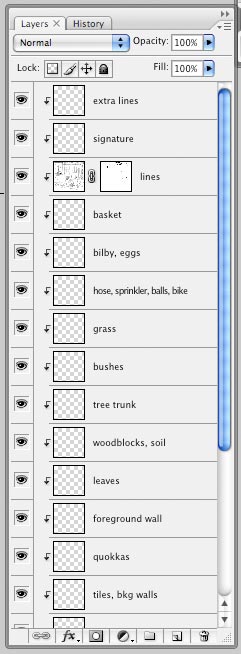

10. I make new layers underneath the lines layer- a different layer for each set of objects in the drawing. The topmost colour layer is usually for the object closest in the foreground- in this case, the basket. The next layer is called ‘bilby, eggs’. I name each lower layer according to the order that objects appear in the drawing- in the foreground behind the bilby are the sprinkler and garden hose- then there are objects behind those objects, like the grass and bushes- and finally there are the objects right at the back, like the house, fence and sky.

closeup-layer-palette
Assigning names to new layers

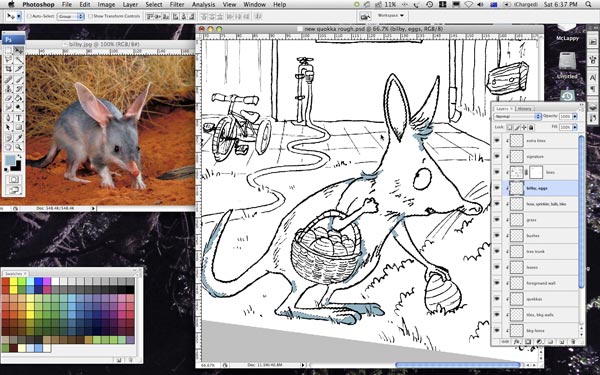

11. When I start colouring an object, I first fill in any gaps in the linework with colour. (I could always make sure the lines in my drawing all joined up, then I wouldn’t have to do this step- but I like to keep my lines looser and more open). In this case, I’m using a photo reference of a bilby to get some colour ideas. I’ve selected a blue-grey colour that looks a bit like bilby fur. You can see the gaps in the linework are filled.

filling the gaps
filling the gaps in the linework

12. Now I can fill the bilby with colour. I use the magic wand tool to select the rest of the bilby’s internals… first I make sure I have ‘sample all layers‘ selected (this means the magic wand will use the lines layer as well as any other layers to detect an enclosed space).

sample-all-layers

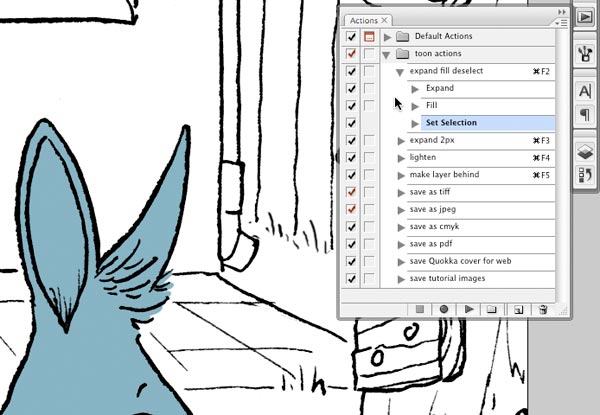

I use a recorded action to fill the bilby with colour, saving time- the action expands the selection by 2 pixels, then fills with the foreground colour, then deselects. (I make the selection expand so I don’t end up with any little traces of white between the colour and the lines).

expand-fill-deselect

Here the bilby is filled with the colour.

bilby-flat-colour
bilby coloured with blue-grey

13. Now I can add details. I’ve started adding in the the pink of his ears. If I click the little box (circled in the image), my paintbrush won’t go outside the areas I’ve already painted on this layer. Very handy trick to speed up your process.

adding-details
adding colour detail

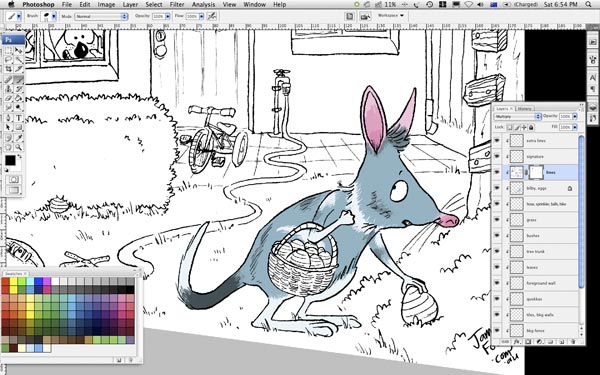

Here I’ve finished the other fur details- lighter greys, and the darker patch on his tail.

finished bilby with fur details
finished bilby with fur details

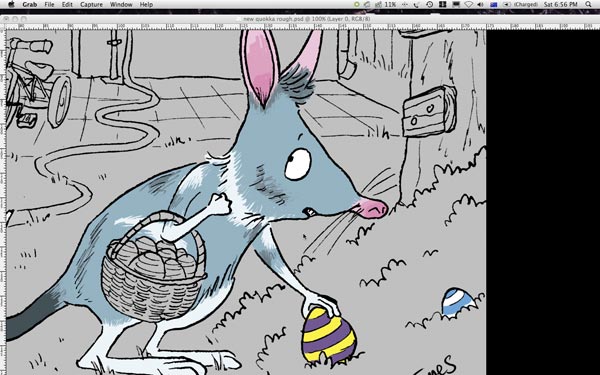

14. My image already has a white background- so you’d think I shouldn’t have to add in white details. But I add these in manually.

It’s not because I’m a sucker for punishment- it’s because later on I will select whole objects so that I can shade them. I’ll need all the details of an object selected- even the eyeball and the teeth on this bilby, for example- and to make sure they get selected, I need to white them in.

To see where I’m painting in white, I add a temporary grey background to the image- see below.

adding whites
adding whites

15. I repeat steps 11-14 for every object in the drawing: filling in gaps in the line, then using the magic wand tool and fill tool, then adding details if necessary.

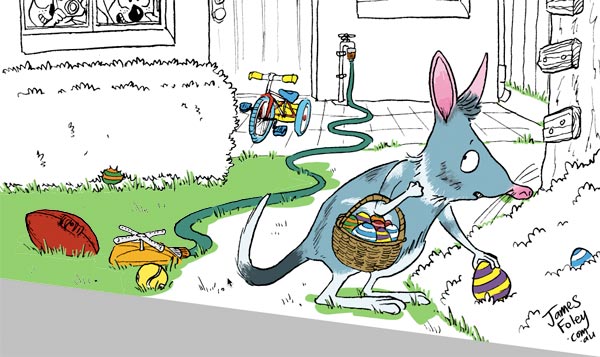

16. I muck around with colours until I’m happy with the balance overall. In the image below, I’ve started off with my standard grass colour; I’ve been filling in the gaps where the grass hits other objects, and I’ve started filling a large section. Once I’ve filled it all in, I realise that the colour isn’t right- the scene in the illustration will take place in early morning, so the grass colour should be cooler with more blue in it (except for where the sunlight hits it).

9-grass
Colouring the grass

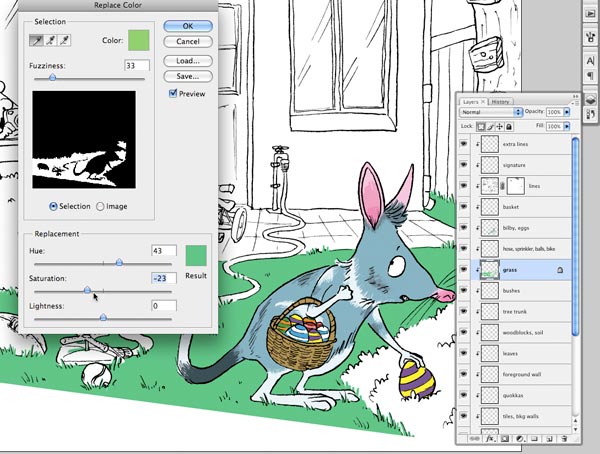

So, I use Image> Adjustments> Replace colour to change the grass colour to a nice cool green…

replace-colour
Image> Adjustments> Replace Colour

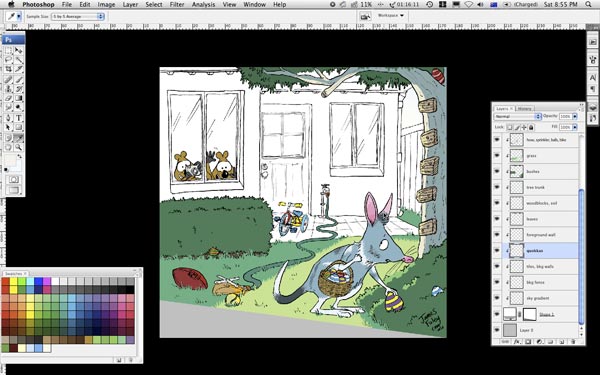

…then I paint in the warmer patch of yellow-green with the brush tool.

early morning grass
grass and bushes in early morning colours

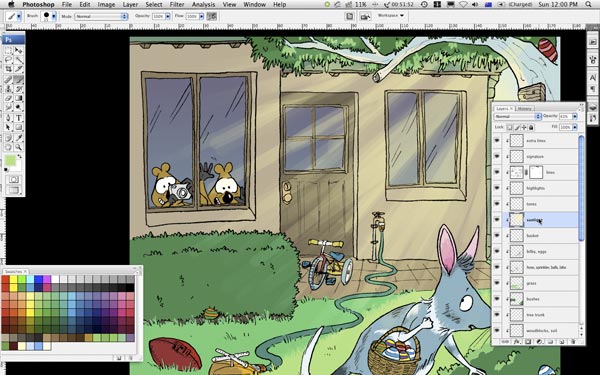

17. Fast forward a bit….  and now all my flat colour is added- see below. I’ve also added an extra layer on top of the colours, called ‘sunlight’- I’ve painted in some beams of light with a pale yellow, and the layer opacity set at 60%.

flat colours
flat colours with sunlight added

18. Now I add shading to each object- tones (i.e. shadows) and highlights. I add two new layers above the topmost colour layer- one of them is called ‘tone’, and the other ‘highlights’.

19. I set the ‘tone’ layer mode to multiply, and usually adjust the opacity to 40-45% (here it’s 77%). Multiply mode makes the purple colour semi-transparent, and helps it blend with the colours underneath.I usually set the ‘highlights’ layer to 40-45% opacity as well, but leave the layer mode as normal (here the opacity is a little higher).

20. Before I start shading, I get the light source sorted in my head. Here it’s the sun rising, peeking from around the side of the house in the background. Once I know where my light source is, I can start to think about where the shadow of each object will fall, and where the highlights will show up.

21. I use a purple colour on the tones layer. I use white or a light yellow colour on the highlights layer. For both the tones and the highlights, I use a semi-transparent brush, with opacity jitter and flow jitter set to ‘pen pressure’. The harder I press, the darker the tone will be. I also set the eraser to a similar brush- semi-transparent, with opacity jitter.

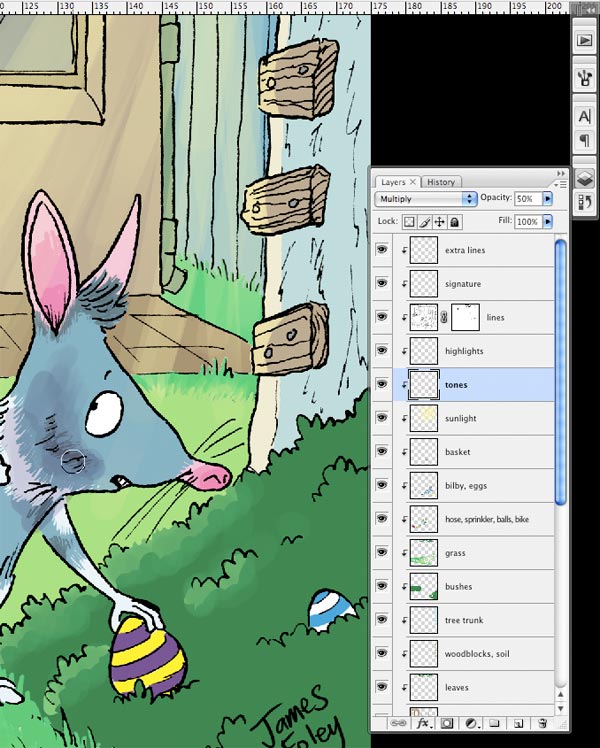

22. I add tone layer by layer. I can mask the objects on a particular layer by holding the command key (Mac) or alt key (PC) and clicking on that layer’s thumbnail in the layer palette. I then leave the selection active, but click on the tone layer in the layer palette and start painting with a light purple colour.

tones
adding tone

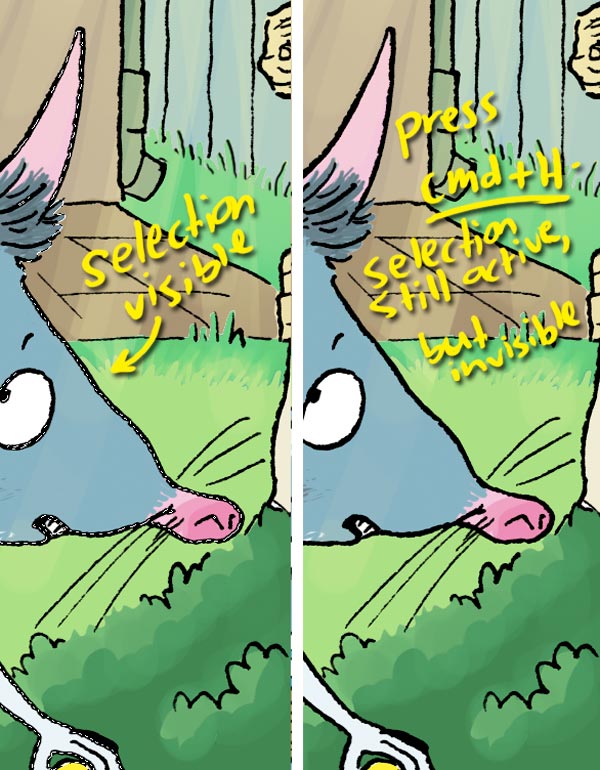

You may have noticed that there is no dashed selection line around the bilby. I’ve hidden it by clicking cmd+H (that’s ctrl+H on a PC).

cmd-H
making the selection lines invisible: press cmd+H (ctrl+H)

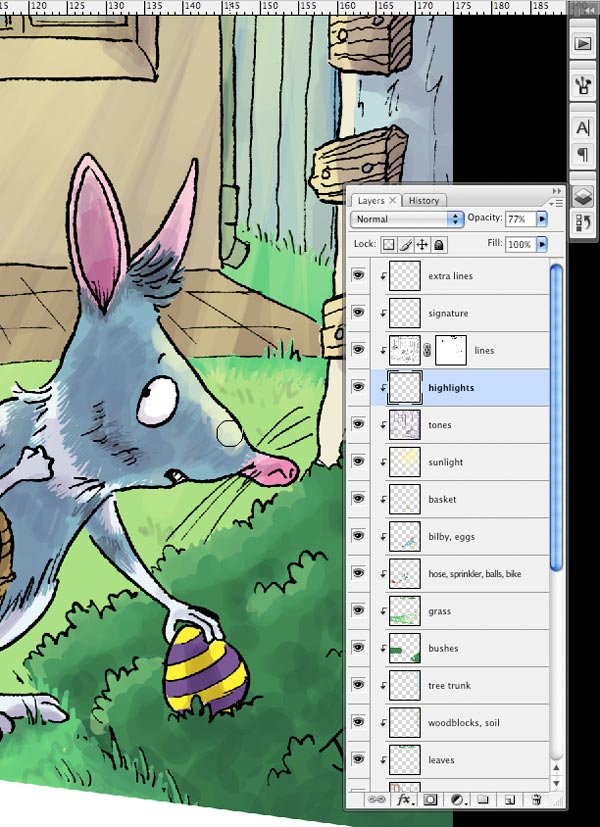

23. Once I’ve added tone to the selected elements, I click on the ‘highlights’ layer, switch my foreground colour to white or light yellow, then start adding highlights to the object. I repeat the process for the objects in each layer.

highs
adding highlights

24. When the image is all done, I save the psd file in RGB, then save a jpeg in CMYK mode and send it to Quokka Press. I also save a web-ready jpeg for this blog. That’s the job done for another week!

20100401-712-Easter
final artwork


Further Info

If you’d like to see this process in action, there’s a video on this post. I recorded myself sketching, inking and colouring the ‘Skydiving’ cover from issue 714… watch 2 and a half hours work compressed into less than four minutes.

I highly recommend this tute from Kazu Kibuishi’s site- one of his colourists, Alan Beadle, goes through the process of ‘flatting’ a page of comic art, in preparation for colouring. I picked up a lot of little tips from this tute. Go see how the pros do it 🙂
